Condition Coverage
Condition coverage includes decision coverage and additionally records if all atomic conditions inside decisions are evaluated to true and to false.
Example: The following function contains a decision consisting of four atomic conditions.
int multicondition(int a, int b, int c, int d){ if ((a || b) && (c || d)){ return 1; } else { return 0; } }
It is tested with the input
multicondition(0, 0, 0, 1); // Test I multicondition(0, 0, 1, 0); // Test II multicondition(0, 0, 1, 1); // Test III multicondition(0, 1, 0, 0); // Test IV multicondition(0, 1, 0, 1); // Test V

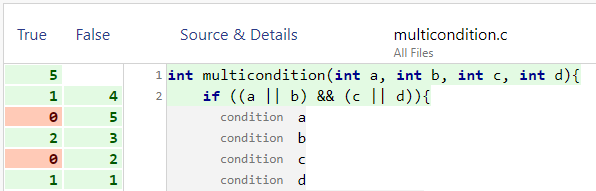

The four conditions are covered in the following way by these test cases:
Condition a
is obviously never true in the tests. Condition c
is actually true in tests II and III, but the short-circuit evaluation prevents that
this is measurable. Condition coverage is harder to be achieved for short-circuit
evaluating languages.
For the code in line 2, ten measure points are taken into account for condition coverage: the true and false evaluation of the whole decision and for each of the four conditions.
